Q-Audio Wireless Microphones

QWM 1970 8 Way Headworn/Lapel System with ADU

QWM1970BP-8W

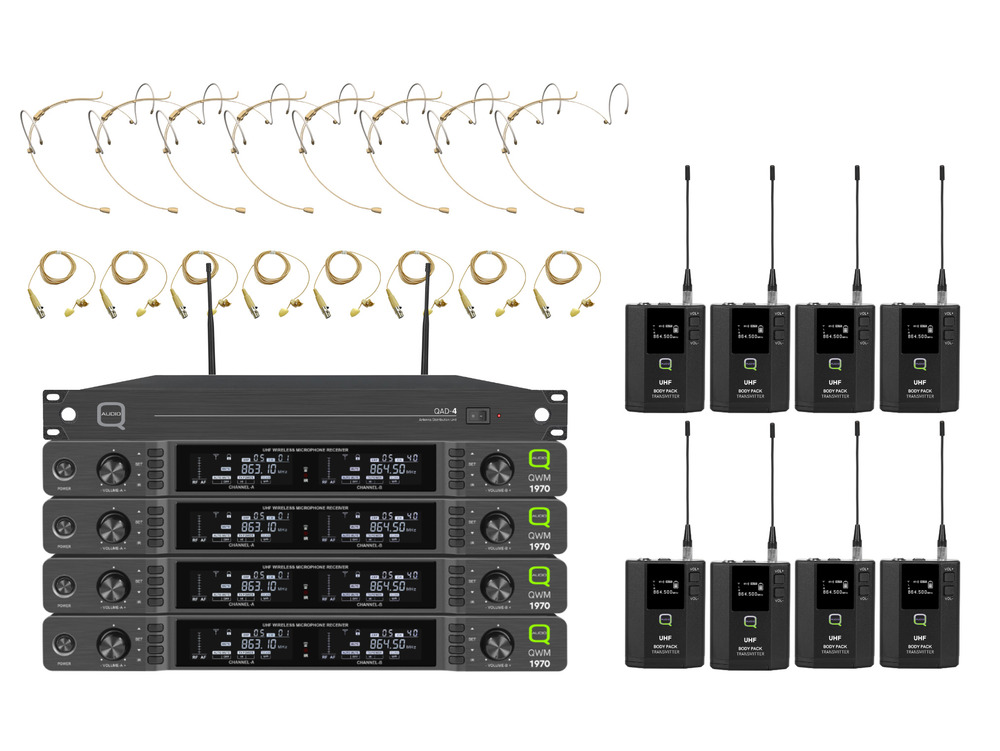

The QWM1970 is a professional true diversity wireless system. This 8 channel package is supplied with 4 dual receivers, 8 bodypack transmitters, 8 beige head-worn mics, 8 lapel mics, and 8 instrument cables. Supplied with a QAD 4 Antenna Distribution Unit and BNC cables, it delivers reliable, flexible performance for speech, vocals, and instruments.

RETAIL:
£1,129.00 inc VAT
 In Stock ( 24 Available )
SKU: 900.977
HS Code: 8518100090
Country of Origin: China

OVERVIEW
FEATURES
DOWNLOADS
PACKING INFO
PRODUCT DESCRIPTION

The Q-Audio QWM1970BP-8W is a complete eight-way wireless package designed for venues and teams that need reliable, easy-to-use radio mics across multiple performers. At its heart are four dual true diversity receivers paired with eight beltpack transmitters. You get eight beige head-worn microphones for discreet, close-mic’d speech, plus eight lapel microphones for hands-free presenting. For musicians, eight instrument cables are included so you can wire up guitars and other instruments with the same system.

To keep RF stable across all channels, the bundle includes the Q-Audio QAD-4 antenna distribution unit and the required BNC leads. The QAD-4 routes a pair of antennas to up to four diversity receivers, simplifying cabling and improving reception in busy RF environments. It is a dual 1:4 active splitter designed for wideband UHF operation, with loop-through for system expansion and DC power distribution for your receivers.

KEY FEATURES

System

  • Complete 8 way package for Headworn/Lapel/Instrument
  • Supplied in channel 38 (606 - 614MHz)
  • 4x QWM 1970 True Diversity Dual Receivers
  • 8x QWM 1970BP Body Pack Transmitters
  • 8x Beige Head Worn Microphones
  • 8x Beige Lapel Microphones
  • 8x Instrument Cables
  • 1x QAD 4 Antenna Distribution Unit


Receiver

  • Frequency: 606 -614 MHz
  • Bandwidth: 8MHz
  • Dynamic Range: 96dB
  • Distortion: <0.1%
  • Signal/Noise Ratio: 96dB
  • Frequency Response: 30Hz - 20kHz ±2dB
  • Signal/Noise Ratio: 90dB
  • Receiving Sensitivity: -95dBm
  • Power Supply: DC 12V 1A


Bodypack Transmitter

  • Frequency: 606 -614 MHz
  • Frequency Switching: IR Sync
  • Harmonic Radiation: <- 50dBc
  • Output Power: Up to 30mW
  • Batteries Required: 2x1.5V AA batteries
  • Battery life: >5h


Antenna Distribution

  • Bandwidth: UHF 450 - 1000 MHz
  • Antenna In/Link Out Connections: BNC
  • Antenna Inputs: 2
  • Antenna Link: 2
  • Antenna Outputs: 8
  • Antenna Power (via Antenna Input): 9v 100mA
  • Power Input Connection: 1x 12v DC Jack
  • Power Output Connections: 4x 12v DC Jack
PACKING INFO
SKU900.977
Outer Carton Quantity1
Commodity Code8518100090
Country of OriginChina
